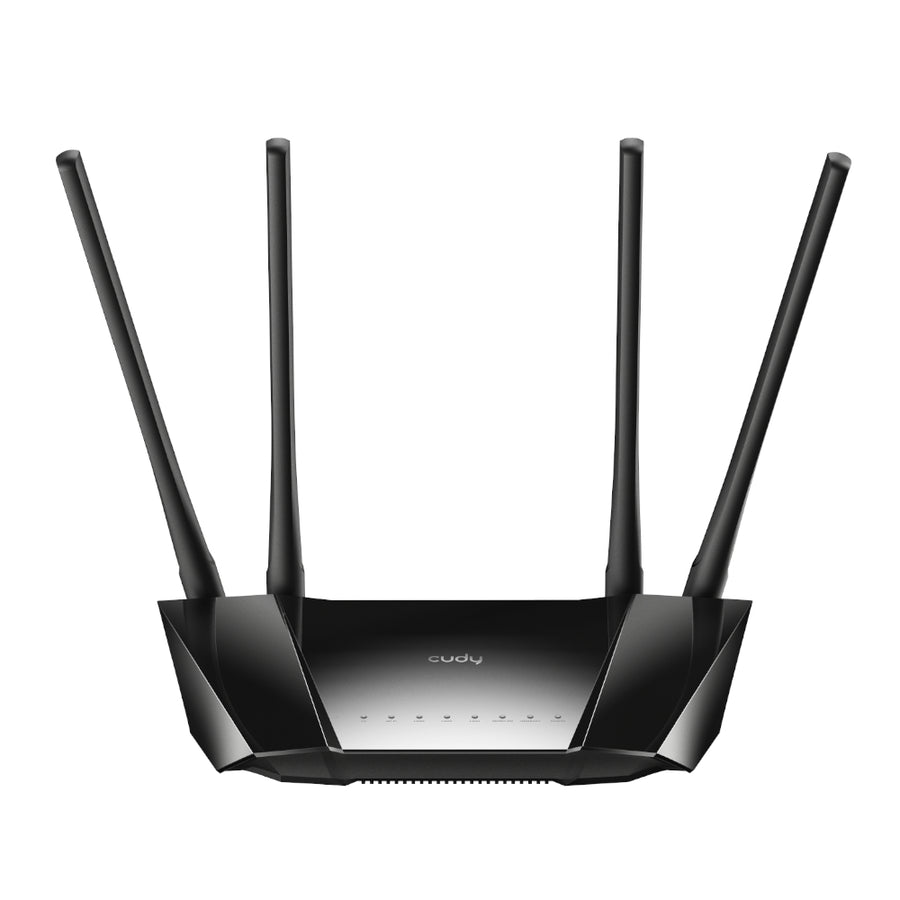

Cudy N300 WiFi 4G LTE Cat4 Router

The Cudy LT400 4G LTE N300 300Mbps Wi-Fi Router is a versatile networking solution, designed to provide reliable internet connectivity even in challenging environments. With 4G Cat. 4 support, it delivers download speeds of up to 150 Mbps and upload speeds of 50 Mbps, ideal for tasks like web browsing, video streaming, surveillance, and POS services. The N300 Wi-Fi ensures a strong and stable network, supported by Beamforming technology and two built-in antennas for enhanced coverage.

Setting up the LT400 is as simple as inserting a SIM card and connecting it to the included PoE adapter, allowing for network deployment up to 100 meters from the adapter. For larger areas, you can expand coverage by pairing the LT400 with additional Cudy access points, enabling seamless Wi-Fi connectivity across cafes, homes, or offices. The router also features flexible WAN/LAN port configurations, a USB port for storage and sharing, and SMA connectors for customizable antenna upgrades, providing adaptability to meet your networking needs.

Built with convenience and security in mind, the LT400 supports PPTP/L2TP VPN clients for secure connections and Wi-Fi scheduling for efficient management. Its 4G watchdog feature ensures automatic reconnection in case of network drops, maintaining uninterrupted service. With its robust design, user-friendly setup, and reliable performance, the Cudy LT400 is an excellent choice for a high-performance network.

FEATURES:

Up to 150Mbps / 50Mbps LTE speed

Up to 300Mbps Wi-Fi speed

Support PPTP/L2TP VPN client for security connections

Support 20+ DDNS for remote management

USB port for easy storage and sharing

4G watchdog can automatically redial when disconnected

Wi-Fi schedule supports configuration of available Wi-Fi time

Flexible WAN/LAN port for dual connectivity

SPECIFICATIONS:

Chipset: MT7628

CPU Details: 580MHz Single-Core, MIPS24KEC

Flash/ROM: 8 MB (64 Mbit ) NOR

DDR/RAM: 64 MB (512 Mbit) DDR2

Cellular Standards: 4G Cat. 4

Cellular Antennas: 2× Fixed

Detachable Cellular Antennas Connector: SMA Female

SIM Options: 1× Nano SIM Slot

Suitable Region: Europe, Middle East, Africa

Max DL Speed: 150Mbps (LTE-FDD), 130Mbps (LTE-TDD)

Max UL Speed: 50Mbps (LTE-FDD), 30Mbps (LTE-TDD)

Advanced: DL 2×2 MIMO

Cellular Bands:

LTE-FDD: B1/3/5/7/8/20/28

LTE-TDD: B38/40/41

WCDMA: B1/5/8

2.4 GHz Wi-Fi Speed: 300Mbps

2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

Wi-Fi Antennas: 2× Internal

Beamforming: True

Range Performance:

Max: 130 m (427 ft)

Indoor Wi-Fi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.

Wall Performance:

One wooden walls with thickness < 10 cm (4)

One concrete wall with thickness < 10 cm (4)

Physical Buttons: Reset Button

10/100Mbps RJ45 Ports: 4

Ethernet Notes: One port supports WAN/LAN configuration, and the rest are LAN ports

USB Ports: 1× USB 2.0

LED: System

Power Input: DC Jack

Power Methods: DC

DC: 12V 1A

Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC | Output: 12V 1A DC

ESD Contact Protection: 4kV

ESD Air Protection: 8kV

Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)

Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)

Operating Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5% ~ 90% non-condensing

Product Dimensions: 22.9 x 12.3 x 3.2 cm

WHATS IN THE BOX:

Cudy LT400 4G LTE N300 300Mbps Wi-Fi Router Black x1

Power Adapter x1

RJ45 Ethernet Cable x1

Quick Installation Guide x1
