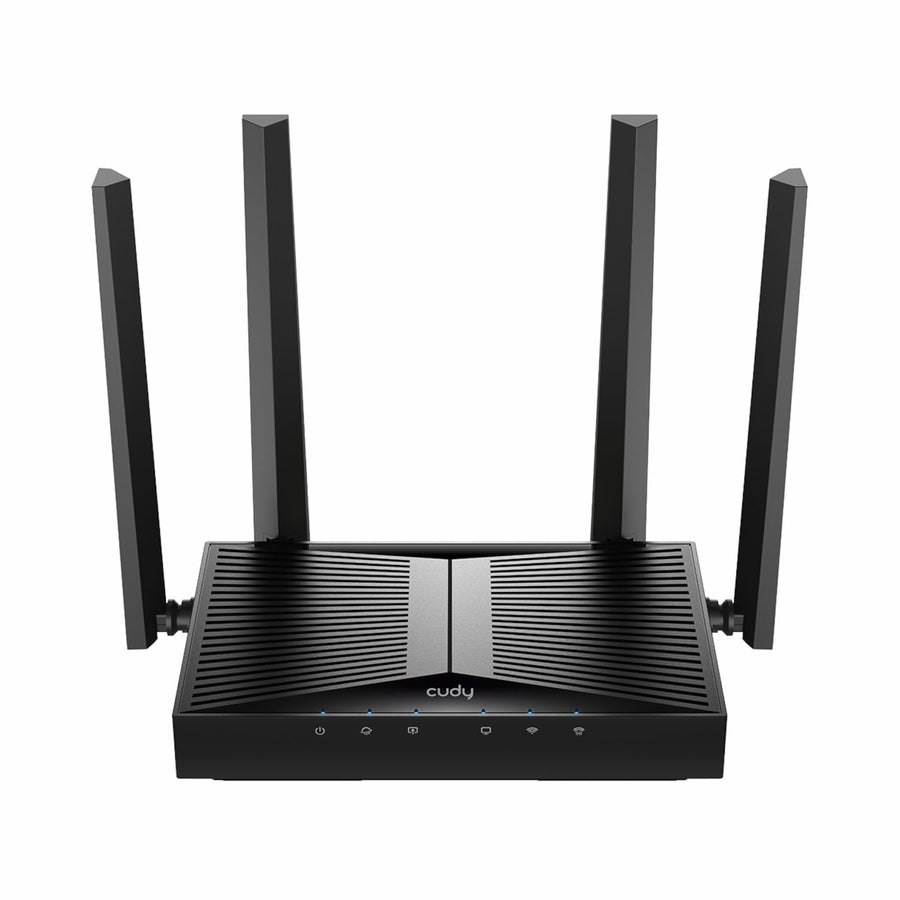

Cudy BE3600 Gigabit Dual Band Wi-Fi7 Router

The Cudy BE3600 Gigabit Wi-Fi 7 Router marks a bold leap into the future of wireless networking. Engineered for modern digital demands, this high-performance router delivers blazing-fast speeds, unparalleled device capacity, and next-gen efficiency—all within a sleek, dual-purpose form factor suitable for both desktop and wall-mounted installations.

Harnessing the power of Wi-Fi 7 (802.11be), the Cudy BE3600 Gigabit Wi-Fi 7 Router pushes throughput up to 3570 Mbps, powered by advanced features like Multi-Link Operation (MLO), 160 MHz channel width, and 4K-QAM modulation. Whether streaming in 4K, dominating online multiplayer games, or managing a fully connected smart home, the Cudy BE3600 Gigabit Wi-Fi 7 Router ensures low latency, consistent bandwidth, and rock-solid connectivity.

At its core is a robust 2.0 GHz quad-core Broadcom ARM Cortex-A7 CPU, paired with 512 MB RAM and 128 MB flash memory, providing the muscle needed for simultaneous high-load tasks. With support for up to 512 devices, its built for the bandwidth-hungry home or office.

The Cudy BE3600 Gigabit Wi-Fi 7 Router also goes beyond performance. It’s a comprehensive network management hub with QoS, guest networks, VPN server/client options, and powerful parental controls. Advanced diagnostics, secure remote access, and compatibility with leading DNS providers give you full control from anywhere.

In short, this is not just another wireless router. The Cudy BE3600 Gigabit Wi-Fi 7 Router is your home’s digital command centre—future-ready, gamer-approved, and streaming-optimised.

FEATURES:

Wi-Fi 7 speeds up to 3570 Mbps with 160 MHz channels

Multi-Link Operation (MLO) for ultra-low latency and seamless handoffs

2.0 GHz quad-core processor ensures fast, stable performance

Connect up to 512 devices across dual bands

MU-MIMO and OFDMA for efficient multi-user throughput

Active beamforming with high-gain fixed antennas for wider coverage

Full suite of VPN protocols, including WireGuard and OpenVPN

WPA3 security and guest network options enhance data protection

Gigabit Ethernet ports (1 WAN + 4 LAN) for wired flexibility

Desktop and wall-mountable design with intuitive app and web UI

SPECIFICATIONS:

Performance

Wi-Fi Standard: IEEE 802.11be (Wi-Fi 7)

Total Bandwidth: Up to 3570 Mbps

5 GHz: 2882 Mbps

2.4 GHz: 688 Mbps

Coverage: Up to 130 m²

Maximum Range: 220 m

Max Devices: 512 (Recommended: up to 200)

Hardware

CPU: 2.0 GHz Quad-Core Broadcom ARM Cortex-A7

RAM: 512 MB DDR3L

Flash: 128 MB NAND

Antennas: 4× Fixed High-Gain Antennas

5 GHz: Max 5.5 dBi

2.4 GHz: Max 5.4 dBi

Connectivity & Ports

RJ45 Gigabit Ports: 5 (1 WAN + 4 LAN)

Power Supply: 12V/1A DC

Max Power: 9W

Buttons: WPS, Reset

LED Indicators: Power, Internet, WAN, LAN, 2.4 GHz, 5 GHz

Wireless & Network Features

Wi-Fi Efficiency: MU-MIMO, OFDMA, BSS Colour, Preamble Puncturing

Security: WPA/WPA2/WPA3

VPN Support: WireGuard, OpenVPN, IPsec, PPTP, L2TP, Zerotier

Guest Network: Separate 2.4 GHz & 5 GHz

Operation Modes: Router, Access Point (future: Extender, WISP, Client)

QoS: Per-user rate limiting

IP Versions: IPv4/IPv6 Support

VLAN, IPTV, IGMP, Port Forwarding, DMZ

Application Layer Gateway: IPSec, FTP, SIP, etc.

Management

Local Control Method: Cudy App & Web Interface (Local & Remote)

Firmware Updates: OTA, Web UI

Diagnostics: Ping, Traceroute, NSLookup

Parental Controls: Domain/IP Filtering, Time Scheduling

DNS Options: DNS over TLS, Rebind Protection

Supported Providers: Cloudflare, Google, Quad9

Physical & Environmental

Dimensions: 18.33 × 10.9 × 3.8 cm

Antenna Length: 17.5 cm

Weight: 333.5 g

Install: Desktop / Wall-mount

Operating Temp: 0 ℃ to 40 ℃

Storage Temp: -40 ℃ to 70 ℃

Humidity: 10%–90% operating, 5%–95% storage

Certifications: FCC, CE

WHATS IN THE BOX:

Cudy BE3600 Gigabit Wi-Fi 7 Router (WR3600) x1

Power Adapter (12V/1A DC) x1

RJ45 Ethernet Cable x1

Quick Installation Guide x1
