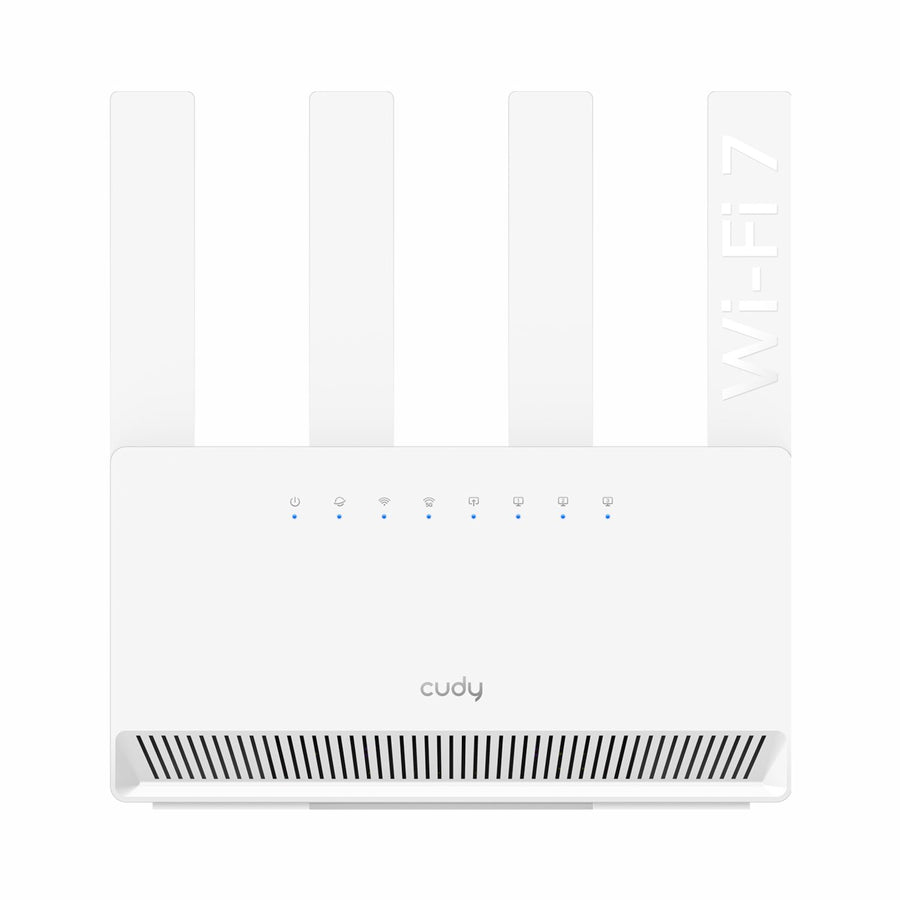

Cudy BE3600 Gigabit Dual Band Wi-Fi7 Router

The Cudy BE3600E Wi-Fi 7 Gigabit Router (WR3600E 1.0) is engineered to deliver exceptional wireless performance, catering to the demands of modern households and small businesses. Equipped with a 2 GHz Quad-Core CPU from Broadcom, it ensures seamless data processing and efficient network management. The routers 4-Stream Dual-Band Wi-Fi 7 technology offers combined speeds of up to 3,570 Mbps—2,882 Mbps on the 5 GHz band and 688 Mbps on the 2.4 GHz band—providing robust and reliable connectivity for multiple devices.​

Designed for expansive coverage, the Cudy BE3600E Wi-Fi 7 Gigabit Router effectively blankets areas up to 130 m², making it suitable for various home and office layouts. Its four Gigabit Ethernet ports facilitate high-speed wired connections, ideal for devices requiring stable and rapid internet access. Supporting up to 200 connected devices, this router is well-suited for environments with numerous smart devices and heavy network traffic. Advanced features such as VPN Server and Client capabilities enhance security for remote connections, while the Cudy App and Cloud Control offer user-friendly management and customization options.​

FEATURES:

VPN server and client support

Broadcom 2 GHz Quad-Core CPU

Cudy app and cloud control management

Four ports provide high-speed wired connections

4-Stream dual-band Wi-Fi 7 delivers speeds of up to 3,570 Mbps

Effective coverage up to 130 m², suitable for various home and office sizes

Supports up to 200 connected devices, accommodating numerous smart devices and heavy network traffic

SPECIFICATIONS:

CPU

Chipset: BCM6764

CPU Details: 2.0 GHz Quad-Core, ARM Cortex-A7

Memory/Storage

Flash/ROM: 128 MB (1 Gbit) NAND

DDR/RAM: 512 MB (4 Gbit) DDR3L

Wireless

Wi-Fi Standards: Wi-Fi 7

Max Wi-Fi Modulation: 4K-QAM

Wi-Fi Efficiency:

MLO

MRU

Puncturing

OFDMA

MU-MIMO

BSS Color

Max Capacity: 512

Recommended Client Upper Limit: 200

Max Wi-Fi Channel Width: 160 MHz

Wi-Fi Security: WPA/WPA2/WPA3

Guest Network: 2.4 GHz, 5 GHz

WPS: True

5 GHz Wi-Fi Speed: 2882 Mbps

2.4 GHz Wi-Fi Speed: 688 Mbps

5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

Wi-Fi Antennas: 4× Fixed

5 GHz Antenna Gain Max: 6.8dBi

2.4 GHz Antenna Gain Max: 5.2dBi

FEM or PA/LNA:

5 GHz: 2× External

2.4 GHz: 2× Internal

Beamforming: True

Range Performance: Max: 220 m

Wall Performance:Two wooden/concrete walls with thickness < 10 cm

One concrete wall with thickness < 20 cm

Interfaces

Gigabit RJ45 Ports: 4

Ethernet Notes: 1× WAN port, the rest are LAN ports

LED:

System

Internet

WAN

LAN

2.4 GHz Wi-Fi

5 GHz Wi-Fi

Physical Buttons:

WPS Button

Reset Button

Power Input: DC Jack

Power

Power Methods: DC

DC: 12V 1A

Power Adapter:Input: 100 ~ 240 V, 50/60 Hz AC

Output: 12V 1A DC

Max Power Consumption: 8.5W

Reliability

Operating Temperature: 0 ℃ ~ 40 ℃

Storage Temperature: -40 ℃ ~ 70 ℃

Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5% ~ 95% non-condensing

Certifications: FCC, CE

Mechanical

Installation: Desktop

Device Dimensions: 20.9 × 4.8 × 22.04 cm

Antenna Length: 17.5 cm

Product Weight 339.8 g

WHATS IN THE BOX:

Cudy BE3600E Wi-Fi 7 Gigabit Router x1

Power Adapter x1

Ethernet Cable x1

Installation Guide x1
